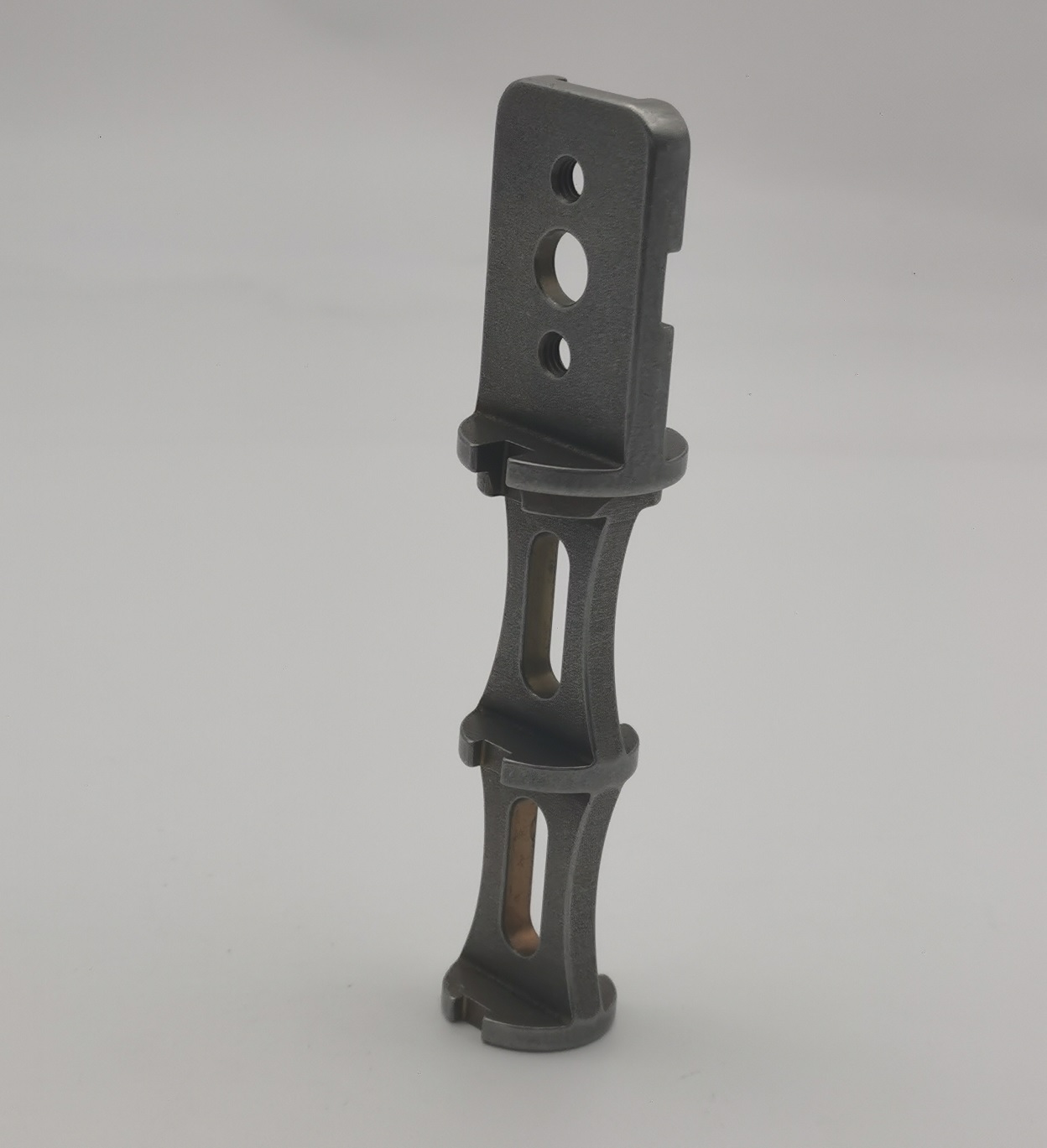

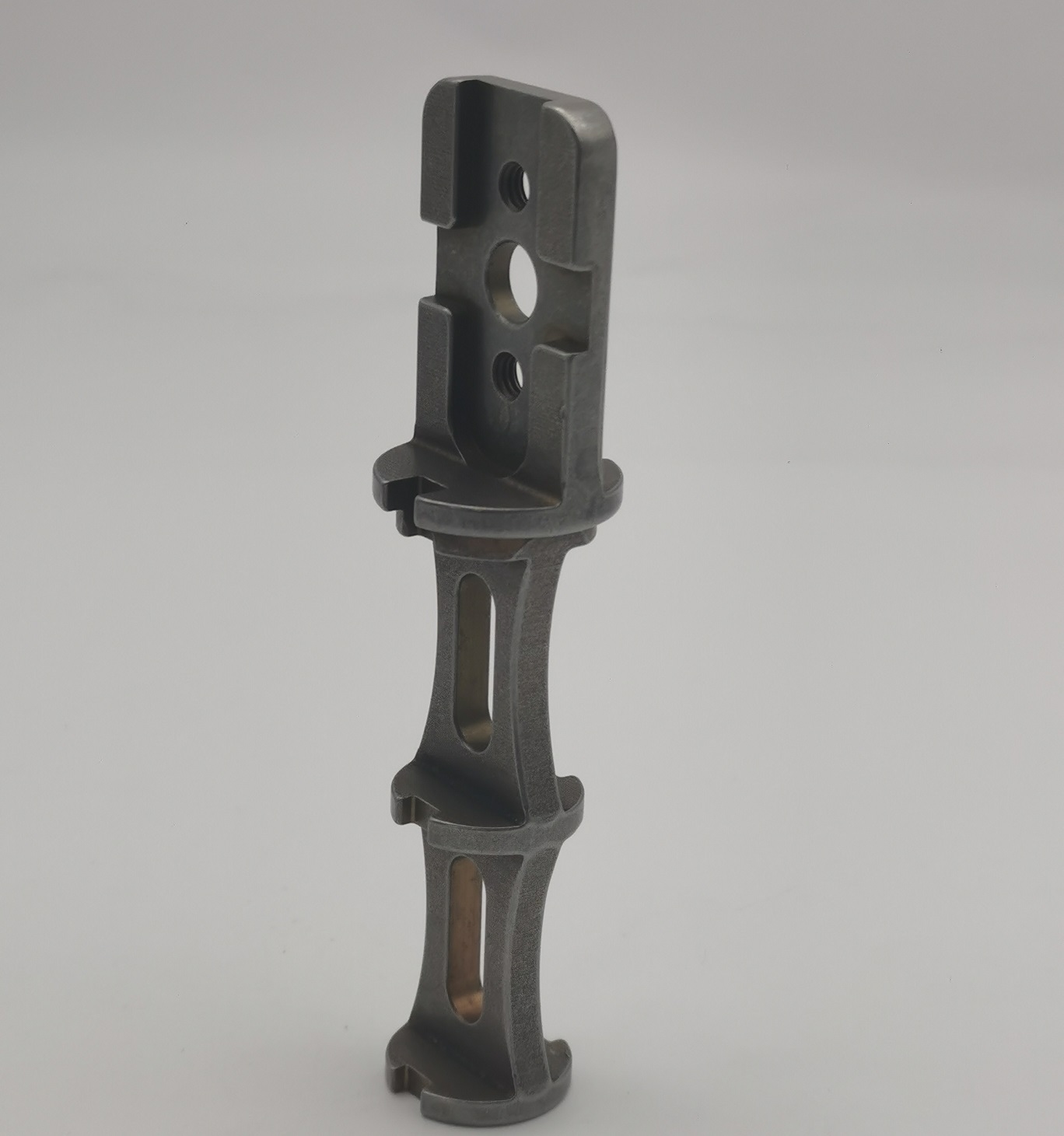

Custom 17-4PH Stainless Steel Saw Shaft Adapter

JG manufactures custom 17-4PH stainless steel saw shaft adapters for OEM equipment manufacturers requiring high-strength, corrosion-resistant and precisely machined mechanical connection components.

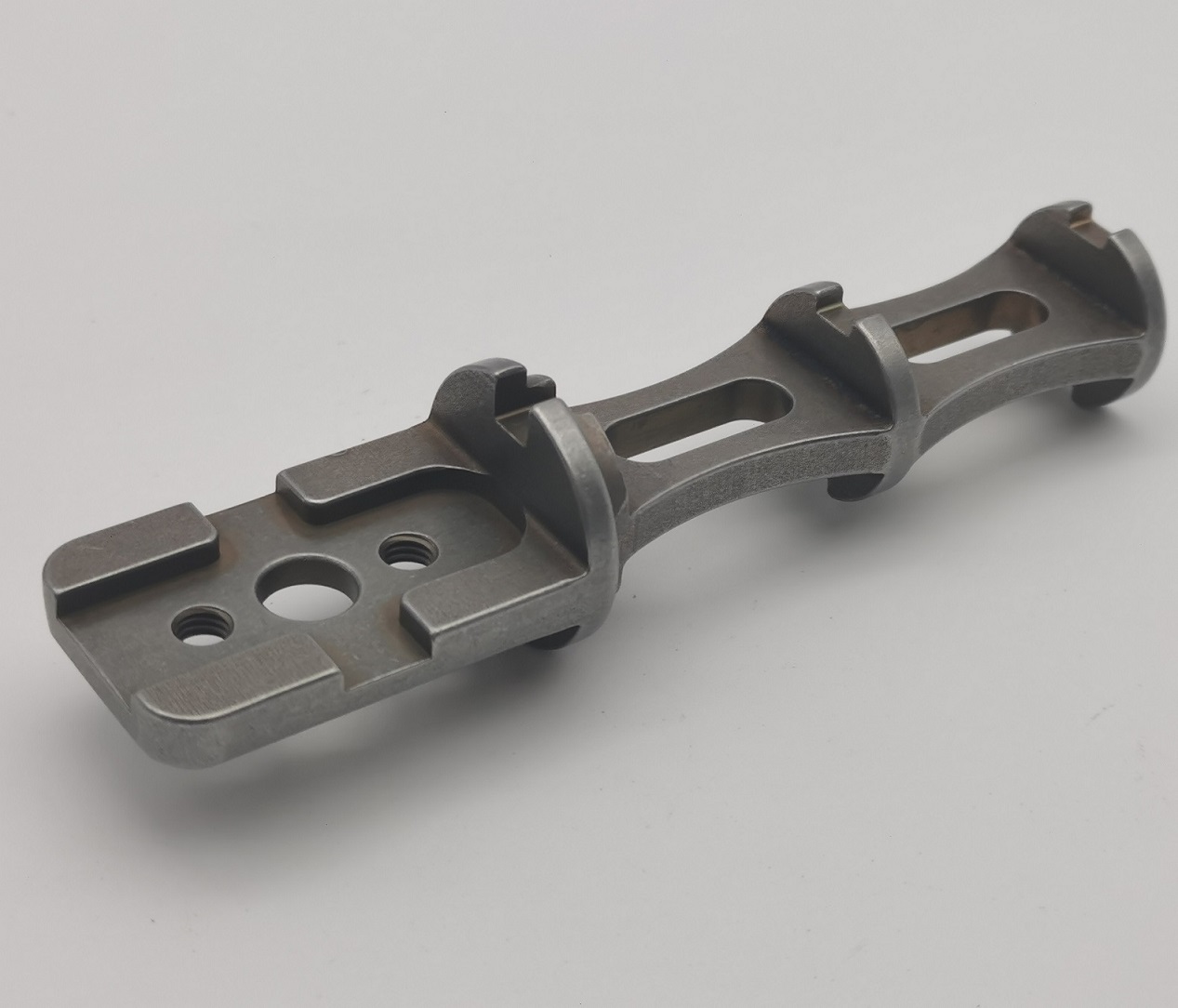

Designed for industrial saw assemblies and custom power-transmission systems, this adapter integrates mounting features, threaded holes, locating surfaces and reinforced ribs into one precision-engineered casting structure. By combining investment casting with CNC machining and heat treatment, JG provides durable shaft adapter solutions that meet demanding mechanical assembly requirements.

Engineering Value

The main manufacturing challenge is controlling a long, ribbed casting while maintaining the relationship between the mounting face, center hole, threaded holes and curved support sections. JG uses a controlled precision casting process to form the complex geometry close to final shape, followed by CNC machining of functional surfaces, holes and threads.

This approach reduces material waste while preserving the strength of the reinforced structure. Machining allowances, fixture location and heat-treatment sequence are planned to limit distortion and maintain reliable assembly after hardening.

Technical Specifications

Manufacturing Process

• Tooling and casting-process review
• 17-4PH stainless steel precision casting
• Gate removal and preliminary cleaning
• CNC machining of mounting faces and through holes
• 10-32 UNC-2B thread machining and gauging
• Heat treatment to 40-45 HRC with double temper
• Controlled deburring and edge blending
• Dimensional, thread and hardness inspection
• Final cleaning and protective export packaging

Manufacturing Challenges

Producing a custom 17-4PH stainless steel saw shaft adapter with thin ribs, long slots and changing wall sections requires precise control of casting behavior and machining stability. These complex structural features can create risks such as shrinkage, warpage and fixture instability during manufacturing.

JG manages these challenges through casting process optimization, balanced feeding design, defined machining datums and staged inspection procedures. For each shaft adapter component, the mounting plate and threaded features are machined only after stable locating surfaces are established to maintain accurate assembly relationships.

Heat treatment is equally important for 17-4PH stainless steel saw shaft adapters. Double tempering is applied to achieve the required 40-45 HRC hardness range while improving dimensional stability after machining. Critical holes, threads and mounting relationships are verified after heat treatment rather than relying only on in-process measurements, ensuring reliable performance in industrial saw assemblies and mechanical systems.

Quality Control

Inspection covers material verification, casting appearance, machined dimensions, thread acceptance, hardness and edge condition. Threaded holes are checked with appropriate gauges, and critical dimensions are measured with calibrated inspection equipment. Material certificates, hardness records and dimensional inspection reports can be supplied according to project requirements.

Applications

• Industrial saw shaft assemblies
• Cutting and trimming equipment
• Power-transmission mounting systems
• Special-purpose machinery
• Heavy-duty mechanical linkages
• Custom OEM equipment

Frequently Asked Questions

Q1: Can JG manufacture custom saw shaft adapters according to customer drawings?

Yes. JG supports OEM production based on customer-provided drawings, 3D models and technical specifications. Engineering review is available before production to evaluate manufacturing feasibility.

Q2: Why choose 17-4PH stainless steel for shaft adapters?

17-4PH stainless steel provides high strength, hardness and corrosion resistance after heat treatment, making it suitable for mechanical components exposed to repeated loads and industrial environments.

Q3: What manufacturing processes are used for this shaft adapter?

The production process such as custom 17-4PH stainless steel saw shaft adapter includes precision casting, CNC machining, thread machining, heat treatment, deburring and final inspection.

Q4: Does JG support prototype and small-batch production?

Yes. JG supports prototype manufacturing, small batch orders and repeat OEM production according to customer requirements.

Q5: Can inspection reports be provided with the finished parts?

Yes. Material certificates, hardness records and dimensional inspection reports can be provided according to project requirements.

Why JG

JG combines precision casting, CNC machining, heat-treatment coordination and dimensional inspection under one OEM manufacturing program. Our engineering team supports drawing review, prototype validation, small batches and repeat production. Send your 2D drawing and 3D model for manufacturability feedback and a quotation.
